| TECHNICAl SPECIFICATION |
| MODEL |
OUTDOOR CAMERA |

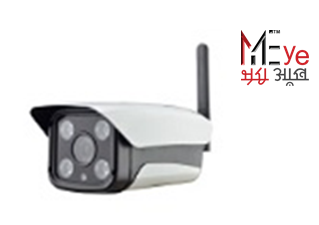

MyEye 390 (Outdoor Waterproof) – Lan/Wifi / 3g / 4g |
| System |
CPU |
TI DSP |
|
FLASH |
128MB |
|
DDR2 |
128MB |
|
OS |
Linux2.6 |
| Image Sensor |
Image Sensor |
1/4″ Color CMOS Sensor |
|
Display Resolution |
1280×720 Pixels |
| Lens |
Lens |
f=6~16mm (Optional) |
|
Mini. Illumination |
2Lux ; 0Lux(Infrared light) |
|
Lens Type |
Glass Lens (Day and night) |
|
Viewing Angle |
85° |
| Audio |
Input |
MIC audio input (Optional) |
|
Output |
1 channel audio line output (Optional) |
|
Audio Compression |
AAC (G711 Optional) |
| Video |
Video Compression |
H.264 Main Profile, MPEG4, MJPEG |
|
Video Frame Rate |
30fps(720P), 30fps(D1) |
|
Video bit Rate |
64k~12Mbps |
|
Resolution |
1280×720(720P), 720×480(D1), 640 x 480(VGA), 320 x 240(QVGA) , 528×384(DCIF), 352 x 288(CIF)(Can be defined by customer) |
|
Flip Mirror Images |
Vertical / Horizontal |
|
Light Frequency |
50Hz, 60Hz or Outdoor |
|
Video Parameters |
Brightness, Contrast |
| Storage |
TF Card |
Support up to 32GB |
| Network |
Ethernet Interface |
Build in 10/100Mbps,Auto MDI/MDIX , RJ-45 |
|
Supported Protocol |
HTTP,FTP,TCP/IP, UDP, SMTP, DHCP, DDNS, UPnP,RTSP |
|
|
CDMA2000 WCDMA |
|
Compatibility |
If no SIM card, It can be used as a wired IP camera |
| Pan/Tilt &I/O |
Pan/Tilt Angle |
ePTZ(4X) |
|
Infrared Light |
4 IR LEDs, Night visibility up to 30 meters |
|
RS485 |
For outsid Motor PTZ (Optional) |
|
Alarm Input |
1 (Optional) |
|
Alarm Output |
1 (Optional) |
|
Motion Detect |
Video data motion detect |
|
Reset |
1 Reset button |
| View methods |
iPhone\iPad |
Application from APP store |
|
Android |
Appication for android 2.1 and higher version |
|
PC Client |
Setting IP address and multi-picture view |
|
Other system connection |
TCP、RTSP、SIP |
|
Browser |
IE6.0/7.0/8.0 or other standard browsers |
| PC System Requirements |
CPU |
2.0GHZ or above (suggested 2.0GHz dual core) |
|
Memory Size |
512MB or above (suggested 2.0GMB) |
|
Display Card |
64M or above |
|
Supported OS |
Microsoft Windows 2000/XP/Vista/7 |
| Power |
Power Supply |
DC 12V/3A (EU,US,AU adapter or other types optional) |
|
Power Consumption |
8 Watts (Max.) |
| Environment |
Operate Temper. |
(-)10° ~ 50°C |
|
Operating Humidity |
20% ~ 80% non-condensing |
|
Storage Temper. |
(-) 20~60°C |
|
Storage Humidity |
15% ~ 85% non-condensing |
| Waterproof |
IP66 |
|
| Certification |
CE, FCC, RoHS |
|
| Warranty |
Limited 1-year warranty |
|
